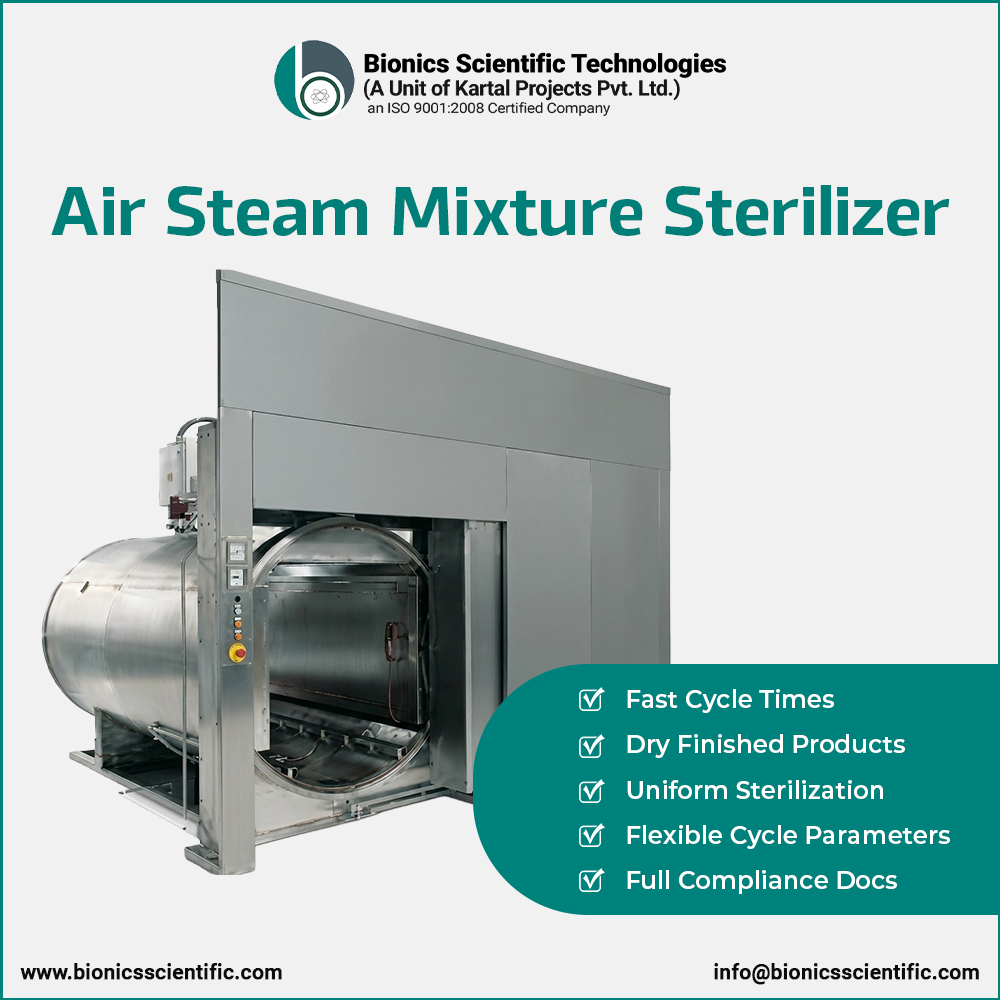

Designed for ventilator sterilization, an air steam mixture sterilizer is used to sterilize large volume parenterals (LVP), blood bags, flip-off seals, blister packs and heat sensitive products etc. It is also called Ventilator Autoclave, which is known as a device used for sterilizing pre-filled containers. Unlike steam sterilizers, air is maintained inside the chamber in order to support the pressure in order to prevent container deformation or damage.
We closely work with pharmaceutical companies and design such steam air mixture sterilizers that meet requirements of effective terminal sterilization of products. Each unit demonstrates superior level of user friendliness and possesses features that make working safe and convenient. These units exhibit excellent uniformity of air steam distribution across the chamber. Our air steam sterilizers feature advanced control system, which enable users to adjust the cycle parameters extremely rapidly. Each unit is equipped with thermal printer in order to give comprehensive documentation of various cycles, enable user to convey information to others in convenient manner.
The best feature of our air steam sterilizers is that products come out dry and can be ready to use. Each machine can be equipped with fully automatic loading and unloading trolleys for maximum productivity.
We custom engineer air steam mixture sterilizers to fit into your application with full service satisfactory installation at client's site. We supply these units to all over India and overseas at factory price with excellent warranty and reliable after sales support.
Uniform air steam mixture spread | Products come out dry and ready to use |
Rapid adjustment of cycle parameters | Fast heating and cooling times |
Chamber doors secured on four sides | Validation support documentation |
Model | Chamber Size (W x H x D) mm |
Diameter mm | Working Pressure Abs, bar |
---|---|---|---|
BST/VS-12 | 900 x 900 x 1050 | 1350 | 3.6 |
BST/VS-13 | 900 x 900 x 2100 | 1350 | 3.6 |
BST/VS-14 | 1050 x 1100 x 1200 | 1560 | 3.6 |
BST/VS-15 | 1050 x 1100 x 2400 | 1560 | 3.6 |
BST/VS-16 | 1200 x 1200 x 2400 | 1700 | 3.6 |
BST/VS-17 | 1200 x 1200 x 3600 | 1700 | 3.6 |
Steam pressure | 0.3 – 0.5 MPa | ||
Design pressure | 0.17 MPa | ||
Water pressure | 0.2 – 0.4 MPa | ||
Working pressure | 0.15 MPa | ||
Compressed air pressure | 0.5 – 0.7 MPa | ||
Working Temperature | 126°C | ||
Optional |
- Load / unloading trolley - Shelf trays - Shelf trolley |
