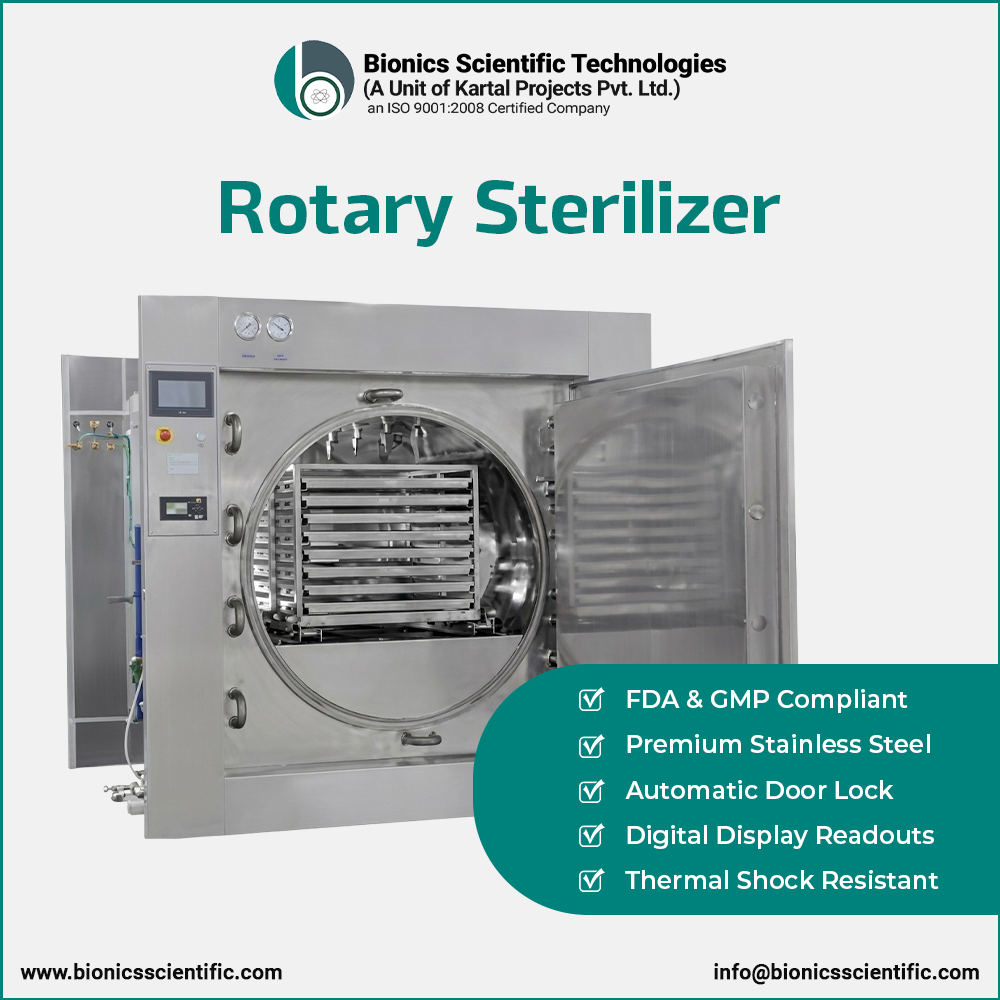

Rotary Sterilizer
Bionics Scientific offers a comprehensive range of rotary sterilizers that are widely used in pharmaceutical and food industries for sterilization for suspension and emulsion applications. Working based on saturated steam sterilization, these continuous rotary sterilizers fulfill GMP and FDA requirements. The rotation speed is adjustable and controlled via magnetic drive unit inside of unit.
We have designed our rotating sterilizers in such a way so that the operator can use the machine in very easy and safe way. The whole unit is made of high grade stainless steel, which ensures long service life without corrosion on the surface. Doors are heavy duty in nature and electrically balanced ensure safe operation every time you load and unload the trays. Our rotary sterilizer machine is fitted with PLC and touch screen in order to offer fully automatic functions throughout the process. Thermal printer is also attached to record and print parameters, temperature, sterilization cycles etc.
Features
| Meet GMP & FDA requirements | Meet pharmaceutical & food industry standards |
| Digital readouts of all parameters | 304 / 316 stainless steel construction |
| Thermal printer | Total concealed wiring |
| Automatic door locking mechanism | Vibration and thermal shock resistant |
Specifications:
| Model | Inner Chamber (DIA. × L) mm | Overall Size (L× W× H) mm | Steam Consumption kg /cycle | Water Consumption kg/cycle |
|---|---|---|---|---|
| BST-XZ-0.6 | 1100 × 1580 | 1825× 1905× 1850 | 90 | 1500 |
| BST-XZ-1.2 | 1250 × 2300 | 3460× 1980× 2000 | 170 | 4500 |
| BST-XZ-2.5 | 1400 × 3080 | 3200× 2130× 2120 | 300 | 7000 |
| BST-XZ-5.0 | 2000 × 3100 | 3500× 2800× 2800 | 580 | 15000 |
| BST-XZ-8.0 | 2000 × 4850 | 5250× 2800× 2800 | 700 | 18000 |
| BST-XZ-10 | 2500 × 4100 | 4600× 3200× 3300 | 850 | 30000 |
| BST-XZ-12 | 2500 × 4800 | 5300× 3200× 3300 | 1000 | 35000 |
| Steam Pressure | 0.4 – 0.6 Mpa |
|||
| Design Pressure | 0.17 – 0.27 Mpa |
|||
| Water Pressure | 0.2 – 0.3 Mpa |
|||
| Working Pressure | 0.15 – 0.27 Mpa | |||
| Compressed Air Pressure | 0.5 – 0.7 Mpa | |||
| Working Temperature | 134°C | |||
| Rotation Speed | 1 - 20 rpm | |||
| Door | Electrically balanced door | |||
| Construction | Stainless steel | |||
| Control | PLC and Touch screen | |||
| Power Supply | AC 380 Volts / 50 Hz. 3 Phase | |||
