Air Shower: Everything You Need to Know about Cleanroom Contamination Control, Performance, and Purchase

Even a single airborne particle can lead to batch rejection, product recalls, or audit failure in regulated industries.

An air shower for a cleanroom is not just an entry system — it is your first line of defence against contamination. Explore our air shower solutions to understand how the right system can improve your cleanroom performance.

A cleanroom air shower system ensures that personnel and materials are decontaminated before entering controlled environments, maintaining compliance with ISO 14644 standards.

Air Shower Working Principle and How It Functions

Understanding the air shower working principle is essential for selecting the right system for your cleanroom environment.

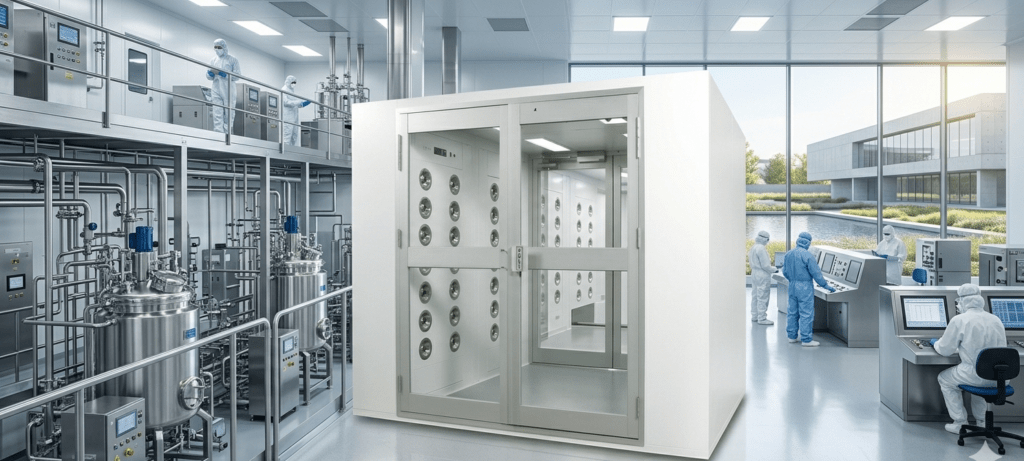

An air shower refers to an independent chamber which is placed at the entrances of the cleanrooms and functions on the principle of high-speed jet streams with the help of HEPA-filtered air in blowing away contaminants that have adhered to the surface material or clothes.

It begins with the entry of the individual into the chamber, upon which the interlocked doors will shut automatically. The air streams, at a speed of about 20 to 25 metres per second, will hit the body of the individual from different sides. The contaminants thus released from the body get blown away in the room by the return air vent and get filtered using HEPA and ULPA filters.

Thus, the entire process keeps the contaminants from entering the cleanroom, keeping the cleanliness standard of ISO 5, 6 or 7 intact.

These classifications are defined under ISO 14644, the global standard for cleanroom performance and contamination control.

The Importance of Air Showers in Modern Industries

Modern industries have been found unable to endure any contamination, as this would bring about a number of negative consequences on their production processes. For example, if there is contamination in the production process of pharmaceutical products, they will be considered unfit for use. Contamination in the production process of semiconductors could cause circuit failure.

From the above discussion, it is clear that the importance of air showers is becoming increasingly significant in modern industries.

For example, pharmaceutical cleanrooms use air showers to maintain sterile production, while semiconductor industries rely on them to prevent micro-particle damage to circuits.

Air Shower Specifications You Must Evaluate Before Buying

One must not base one’s choice when purchasing an air shower only on cost factors. Performance of an air shower depends largely on many important technical specifications.

Material quality in manufacturing is an important aspect. Stainless steel air showers are preferred for use in pharmaceutical and sterilisation departments. Industrial air showers can be produced using powder coating.

Air velocity is yet another critical technical specification. An effective air shower must feature velocity rate of at least 20-25 metres per second.

The HEPA filter efficiency must be capable of filtering 99.97% of particles with a diameter of 0.3 microns. For highly sensitive applications in clean rooms, ULPA filters may be used.

The design of nozzle placement greatly affects cleaning efficiency. Effective nozzles are those that feature adjustable stainless steel nozzles placed all over one’s body.

An interlocking door system helps prevent contamination since one door cannot open without the other being closed first.

Control systems include basic timers to more complex PLC control touch panel systems.

Air Shower Specification Table

Categories of Air Shower Systems

There are several types depending on the purpose. Single air showers are used where there is less traffic in the cleanrooms, whereas multiple air showers are used for high traffic.

Material air showers are for carrying material into the cleanroom while maintaining its cleanliness, while tunnel air showers are best suited for processes such as the assembly of electronics.

It depends on the usage frequency and cleanroom category.

Air Shower vs Other Contamination Control Methods

Air showers are often compared with other contamination control solutions, but their functionality is unique.

Sticky mats only capture particles from footwear, while gowning rooms rely heavily on human discipline. Air showers provide automated, consistent contamination removal, making them a more reliable solution.

How to Choose the Best Air Shower?

There are several important aspects one needs to consider while selecting the best air shower, besides costs only.

The cleanroom class will determine the quality of filtration and airflow that we will achieve. The higher cleanroom classes will require better filters and airflow rates.

Entry volume will determine the size of the room and its capacity. Bigger entry volumes will require bigger capacities.

Compatibility of materials will also be of great importance in order to achieve material compatibility. For sterile applications, stainless steel is essential; however, for other types of industries, other materials could be applied.

Automation will also play an essential role.

Why Most Air Showers Fail

Many air shower for cleanroom installations fail due to poor engineering design and lack of

proper airflow planning.

Poor airflow design leads to uneven cleaning performance, leaving contaminants on critical areas.

Dead zones inside the chamber prevent proper air circulation, resulting in incomplete particle removal.

Weak filtration systems reduce air purity, allowing micro-contaminants to re-enter the cleanroom.

How Do We Do That?

We utilize CFD air flow simulation technology for optimized air flow designs that provide total coverage within the room.

Strategically placed nozzles guarantee that every surface area of the body comes into contact with high velocity air.

Our Air Shower Systems will be customized for your site design needs and in accordance with cleanroom standards.

Why Our Air Showers

By installing an air shower, you not only make a choice about the equipment but also about how effective your contamination control is going to be.

We don’t just provide equipment — we deliver contamination control solutions that improve your cleanroom efficiency and compliance.

All of our air showers feature perfect flow dynamics that enable total removal of particles.

Only high-quality HEPA filters tested for constant efficiency can be found in our units.

It is possible for us to manufacture air showers specifically according to your requirements concerning the size of the unit, materials used, kind of air flow and control systems.

Our experience in the field allows us to recommend the optimal unit design for any purpose.

Our customer service is there to ensure efficient use of the equipment.

This ensures your cleanroom air shower system delivers consistent, measurable contamination control performance with zero dead zones and maximum efficiency.

How Are We Different?

Unlike many suppliers who offer standard air showers without paying any attention to the individual needs of installations, we always try to find a solution for all problems.

The design of each air shower is created by simulation flow to achieve maximum performance and proper nozzle location based on actual requirements.

During our pre-design consultation, we can choose equipment according to the facilities of your organisation.

We aim to develop equipment that will be affordable.

Our approach focuses on real advantages such as contamination reduction and compliance.

True Benefits: The Payoffs Enjoyed

Using an effective air shower system provides concrete benefits.

Reduced contamination risk reduces the number of rejects. Improved cleanroom operations assist you in adhering to industry standards.

Improved efficiency is realized via automation, which reduces dependence on manpower.

Money savings come from avoiding contamination costs.

FAQs

What should be the air speed in an air shower?

The air speed should be at least 20-25 m/s.

What is the time span of an air shower cycle?

Air showers take about 10 to 30 seconds depending on the level of contamination and cleanroom requirements.

Can air showers be customised?

Yes, air showers can be customised according to size, construction, airflow pattern, and controls.

Do air showers require servicing?

The servicing requirement of air showers is minimal but important for optimum performance.

Do air showers have to be installed in cleanrooms?

Air showers do not have to be installed in cleanrooms, but they must be installed.

Conclusion

An air shower could be one of the most effective measures to control the level of contamination within your cleanroom environment. This technology plays a vital role in influencing the product quality, operational efficiency, and regulatory requirements. Choosing the right air shower would depend on several parameters, such as suitability and specifications.

The selection of a proper air shower is essential because not only does it clean, but it also protects your entire process.

A properly designed air shower for cleanroom environments is one of the most effective contamination control solutions available today.
