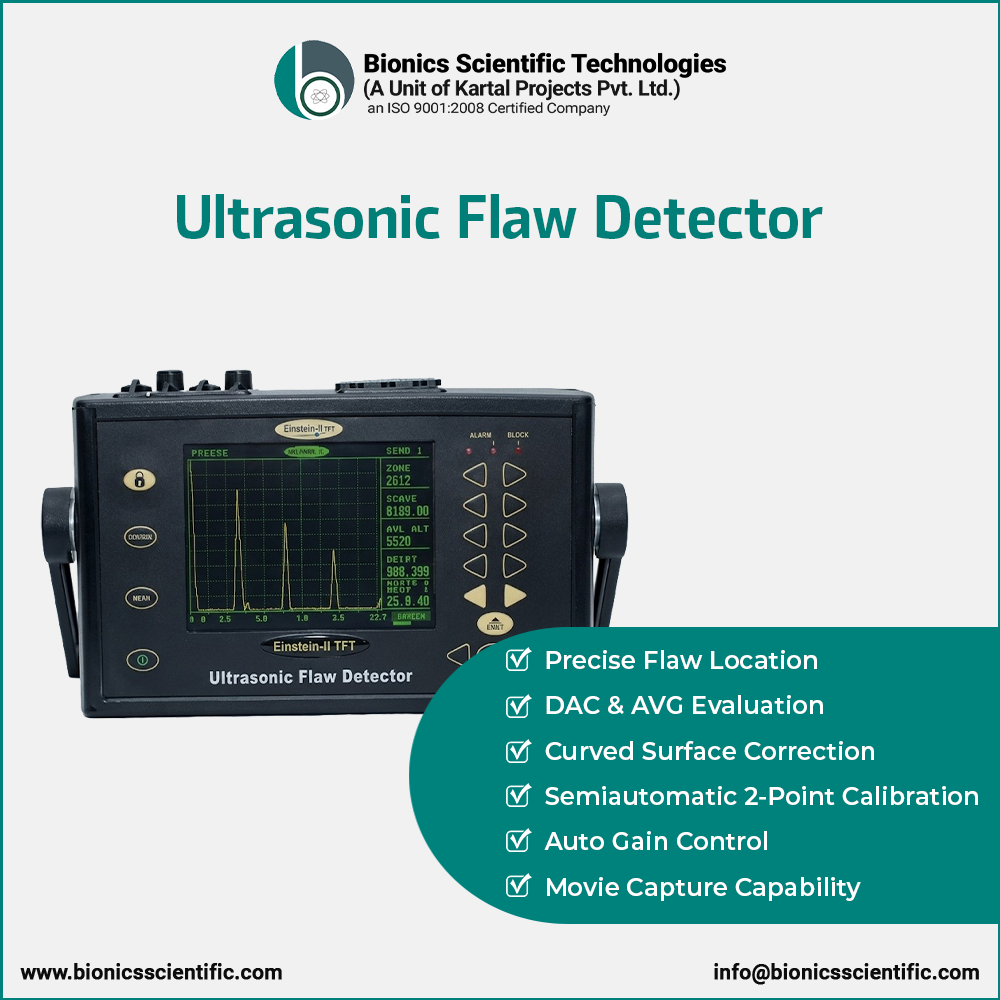

Ultrasonic Flaw Detector
Our company presents its full line of digital ultrasonic flaw detectors, coming with unmatched quality standards for indentifying discontinuities and other flaws. With a wide range of software options available for enhanced flaw detector inspection, these ultrasonic flaw detectors are the most suitable instruments appreciated by industry experts worldwide. These units offer improved LCD screen, USB interface, compact design and more economical price package.
Our ultrasonic Flaw Detectors come in both digital and analog models where digital ultrasonic flaw detectors comprise of an ultrasonic pulser / receiver, hardware and software for signal capture and analysis, a waveform display, and a data logging module and analog flaw detectors are still manufactured, most contemporary instruments use digital signal processing for improved stability and precision.
Features:
| Both the DAC and the AVG method of amplitude evaluation are available | Semiautomatic two point calibration |
| Curved Surface Correction feature | Suitable for use on large work pieces |
| Automatic display of precise flaw location | Automatic gain control, peak hold and peak memory |
| Data can be printed or saved for record purpose | Screen scenes can be captured as movie files |
Specifications:
| Model | BST-UFD20 |
|---|---|
| Product | Ultrasonic Flaw Detector |
| Range | 0 to 9999 mm, at steel velocity |
| Material Velocity | 1000 to 9999m/s |
| Display Delay | -20 to 3400 µs |
| Probe Delay / Zero Offset | 0 to 99.99µs |
| Sensitivity | 110 dB max in selectable resolution 0.1, 1.0, 2.0, 6.0 dB and locked |
| Test Modes | Pulse echo, dual element and thru-transmission |
| Pulser | Tunable Square Wave Pulser |
| Pulse Repetition Frequency range | 10 Hz to 1000 Hz |
| Pulse Energy | Low, Medium and High |
| Damping | 100, 200, 400 ohms |
| Bandwidth (amplifier bandpass ) | 0.5 to 15 MHz |
| Gate Monitors | Two independent gates controllable over entire sweep range |
| Rectification | Positive halfwave, negative halfwave, fullwave, RF |
| System Linearity (Horizontal) | +/-0.2% FSW |
| System Linearity (Vertical) | 0.25% FSH |
| Reject (suppression) | 0 to 80% full screen height |
| Units | Inch or millimeter |
| Transducer Connections | BNC or LEMO |
| Power Requirements | 110 / 220 Volts |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -30°C to 50°C |
| Noise Level | ≤ 10% |
| Relative Humidity | (20 ~ 95)% RH |
