Rotap Sieve Shaker Manufacturer in India

Rotap Sieve Shaker for Particle Size Analysis

A Rotap sieve shaker does two jobs at once. It swings a stack of test sieves in a circle and taps the top of the stack from above. Together, those two movements push a dry sample down through finer and finer meshes, and the weight left on each sieve tells you the particle size distribution. Because the machine repeats the same motion every cycle, two operators running the same test get the same result, which hand sieving cannot promise.

Bionics Scientific has been building laboratory equipment in Delhi for 26 years. Our Rotap range has four models for 8 inch (200 mm) and 12 inch (300 mm) sieves, including a double-column version. Every model has a ¼ HP geared motor, a 0–60 minute timer and a cast iron and painted mild steel body. If the machine will sit in a shared lab, you can add a sound enclosure.

Quick Answer: What Is a Rotap Sieve Shaker?

It is a lab machine that circles and taps a stack of test sieves to separate a dry sample by particle size. It is a popular choice for routine sieve analysis of powders, granules and aggregates.

How Does a Rotap Sieve Shaker Work?

You stack the sieves with the coarsest mesh on top and the finest at the bottom, then put the sample in the top sieve and close it with the cover. Once the machine starts, the motor moves the stack in a circle while the tapper hits it from above. Coarse particles stay on the upper sieves and finer ones fall through. When the timer stops, you weigh what is left on each sieve and work out the size distribution.

Rotap Sieve Shaker Features

Circular motion with vertical tapping Same movement every cycle, so results repeat
Models for 8 inch and 12 inch sieves Double-column model for two 8 inch stacks
Oil-bath mechanism for moving parts Digital or analogue timer, 0–60 minutes
¼ HP geared electric motor Cast iron and painted mild steel build
Optional sound enclosure 220 V power supply

Available Rotap Sieve Shaker Models

Pick the model by sieve diameter and by how many stacks you want to run at once.

Model BST-RSS8 BST-RSS9 BST-RSS10 BST-RSS11
Capacity 8 inch or 200 mm sieves 12 inch or 300 mm sieves Two columns of 8 inch or 200 mm sieves 8 inch (200 mm) or 12 inch (300 mm) sieves
Sound enclosureOptional
ConstructionCast iron and painted mild steel
Motor¼ HP geared motor
Timer0–60 minutes
Timer typeDigital or analogue
Power supply220 V

Sieve Capacity and Fit

The 8 inch machine holds up to seven full-height (2 inch) sieves or fifteen half-height (1 inch) sieves, plus the bottom pan and top cover. Before you order, check the total height of your usual stack against the model you are considering. If you also need sieves, pans or covers, see our laboratory test sieves. For any other diameter or stack height, tell us and we will confirm what fits.

Where Labs Use It

  • Pharmaceutical powders and granules
  • Cement, concrete, soil and aggregate testing
  • Mining, minerals and geological samples
  • Chemical powders and industrial raw materials
  • Food grains, flour and other dry food materials
  • College, research and quality-control laboratories

How to Use a Rotap Sieve Shaker

  1. Pick clean, undamaged sieves that suit your sample and method.
  2. Stack them with the largest opening on top and the smallest at the bottom.
  3. Fit the receiver pan, put your weighed sample in the top sieve and close the cover.
  4. Fix the stack firmly in the machine.
  5. Set the test time and start the machine.
  6. When it stops, weigh the material left on each sieve and record the figures.

Sample weight, sieve series and test time come from your own test method, and they differ between materials and industries.

How to Choose the Right Model

  • Sieve size: go for 8 inch (200 mm) or 12 inch (300 mm), whichever your method uses.
  • Number of stacks: if you test a lot of samples a day, the double-column model lets you run two stacks together.
  • Stack height: add up the height of your sieves, pan and cover, and make sure they fit.
  • Timer: pick digital or analogue, whichever your team prefers.
  • Noise: add the sound enclosure if the machine will share space with people or instruments.

Not sure whether a Rotap is the right type? For routine laboratory testing, Rotap and gyratory machines are the usual picks. If you work mostly with very fine particles, an electromagnetic sieve shaker may suit you better.

Care and Safety

Keep the sieve supports and clamps clean, and look over the tapper and drive for wear now and then. Follow the lubrication schedule that comes with the machine. Always secure the stack before you start a cycle, and keep your hands away from moving parts while it runs. Any electrical or mechanical service should be done by trained people, with the power switched off.

The sieves themselves matter as much as the shaker. ASTM E11 sets the requirements for woven wire test sieve cloth and test sieves. Which standard governs your complete test depends on the material, so check it against your own method.

Rotap Sieve Shaker Price

The price depends on the model, the sieve diameter, whether you need one column or two, the timer type and whether you add a sound enclosure. We quote against your requirement. Price on request: send us your details and we will reply with a clear quote.

Why Labs Choose Bionics Scientific

We build our machines in Delhi and have done so for 26 years. Our brand is a registered trademark (No. 2022609), and we supply laboratories across India and overseas. When you call, you speak to people who know how the machine is made and can help you pick the right model before you buy.

Rotap Sieve Shaker FAQs

What is a Rotap sieve shaker?

It is a lab machine that circles and taps a stack of test sieves to separate a dry sample by particle size.

How does a Rotap sieve shaker work?

A motor swings the sieve stack in a circle while a tapper hits the top of the stack. Together, the two motions push particles through the meshes.

Which sieve sizes do the models take?

The models take 8 inch (200 mm) and 12 inch (300 mm) sieves. BST-RSS10 has two columns of 8 inch sieves.

How many sieves fit in one stack?

The 8 inch model holds up to seven full-height or fifteen half-height sieves, plus the pan and cover.

What is the timer range?

The timer runs from 0 to 60 minutes, with a digital or analogue option.

What does the sound enclosure do?

It cuts the noise made by the tapping and shaking. It is optional on every model.

Are test sieves included with the machine?

Not always. Tell us which sieves, pan and cover you need and we will quote them with the machine.

How do I get the Rotap sieve shaker price?

Send us your sieve diameter, number of columns, timer type and accessories, and we will reply with a quote.

Looking for a Rotap Sieve Shaker for Your Lab?

Tell us your sieve diameter, how many stacks you run and your city. Our team will suggest the right model and send you a quote, usually within one working day.

Request a Quote or call +91 9111161955

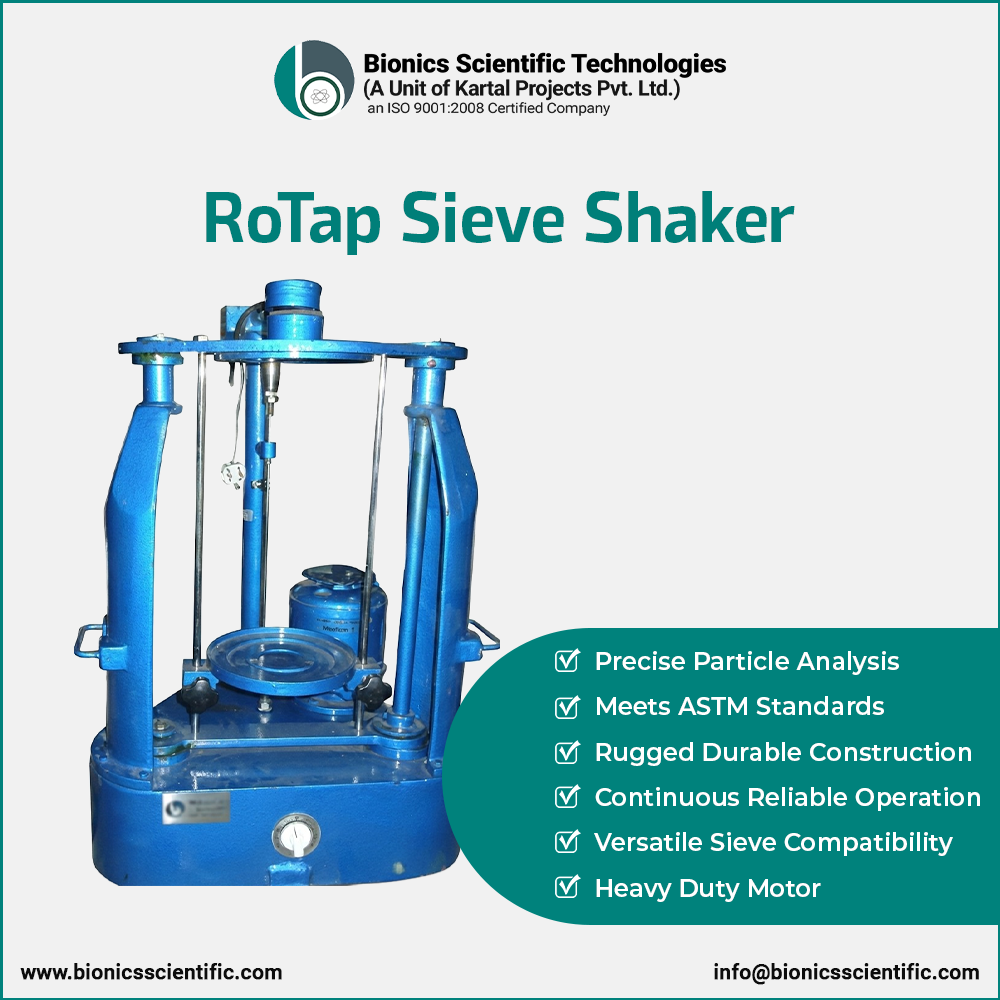

Rotap sieve shaker machine for laboratory particle size analysis
