Plant Growth Chambers & Walk-in Rooms

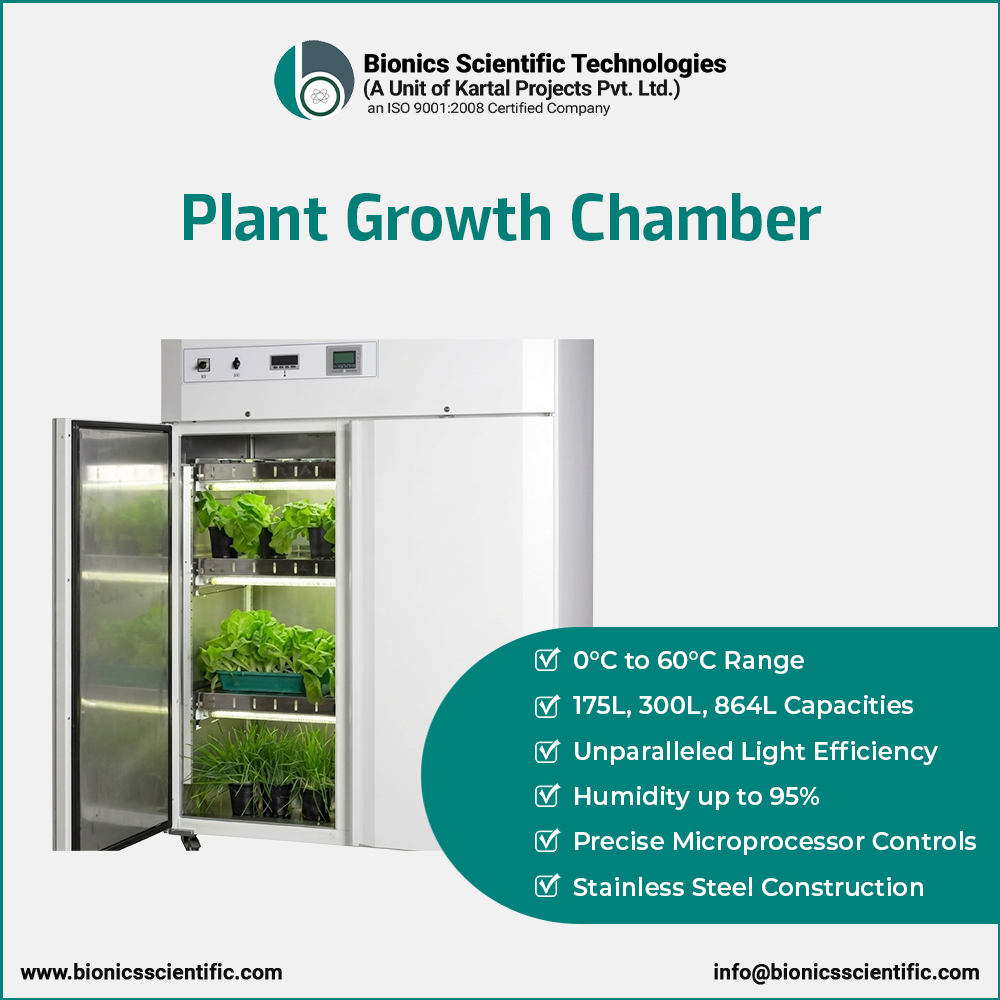

Plant Growth Chamber

Plant growth chambers are special type of environmental test chambers which are designed to perform plant growth experiments inside laboratory. The aim of a plant growth chamber is to create such atmospheric conditions responsible for effective plant germination and growth. In such chambers or cabinets, humidity, temperature and lights are controlled in such a way that you can create desired environment essential for examining growth of a particular plant.

Applications

Plant growth chambers and plant growth walk-in rooms are widely used in agriculture fields in order to do research on crop productivity. Plant related agriculture research and development are the prime applications of these units; plant breeding, plant nutrition, photosynthesis are some of areas where plant growth chambers play an important role. Plant categories may vary such as cereal, arabidopsis, algae, tobacco, physcomitrella, fungi, medicago, weeds, soybeans, potatoes and other commercial crops and horticulture plants etc.

#1 Plant Growth Chamber Manufacturer in India

To perform multiple experiments and for long or large sized plants that require maximum growth height, plant growth rooms prove to be right option. Such units are designed keeping in mind user flexibility, size and future requirements. A plant growth room has enough large and room sized space, where a person can step in easily. These units are completely customized and constructed according to the specific requirements and place available at laboratory. We construct plant growth rooms with different configurations such as short plant and tall plant configurations and 2 tier configurations, horizontal and vertical airflow etc.


Features

Excellent temperature stability Unparalleled light efficiency
High quality fluorescent lamps Automatic microprocessor controls
Interlocked insulated panels Stainless steel inner construction
High and low limit temperature protection Printer and temperature chart recorder
Color touch control panel Adjustable shelving arrangement
Uniform air flow inside chamber Provision to connect with PC
User programmable alarm settings Humidity up to 95%

Specifications

Model BST/PGC-175 BST/PGC-300 BST/PGC-864
Chamber Capacity 175 Liters 300 Liters 864 Liters
Illumination Max. 23000 Lux Max. 23000 Lux Max. 35000 Lux
Cooling Device Hermetically sealed Compressor(1/3 HP) Hermetically sealed Compressor(1/2 HP) Hermetically sealed Compressor (1 HP)
Shelves 3 EA 4EA 8EA
No. of Doors Single Single (Double Optional) Double Doors

Temperature
Range 0°C to 60°C (Light ON: 10°C to 60°C)
Accuracy ±0.5°C at 20°C
Controller Microprocessor PID controller

Humidity
Range 50% to 95% RH
Accuracy ±3%
Controller Microprocessor PID controller
Sensor Electronic Device
Construction
Interior Construction Stainless Steel 304 Grades (Stainless Steel 316-optional)
Exterior Construction MS Powder Coated (Stainless Steel 304 / 316 Grades - Optional)
Insulation Glass Wool
Interior Doors Tempered Glass Door w/ Silicone Packing
External Doors Solid Doors w/ Magnetic Gum Packing
Shelves' Construction Stainless Steel
Other:-
Illumination Type Fluorescent Lamp
Refrigerant Gas R-134a Eco-Friendly Gas
Safety Device - Leakage breaker for power supply
- Over current protector
- Overheat protector
- Water - Level Monitoring Auto Control System
Optional Accessories - Color touch screen controller for Humidity & Temperature
- RS 232 port
- Printer
- Chart recorder
- Caster wheels
- Extra shelves
- DQ, OQ, PQ & IQ Certificates
Power Supply 220 / 240 Volts
Certifications GMP, ISO & CE Certified

Applications

Agriculture Industries Crop Motivation Crop Genetic Engineering
Plant Breeding Micro Biology Photosynthesis
Bio Chemistry Genetic Research Biological Studies
Arabidopsis Entomology Research Tissue Culture

We Support You

Plant growth room consultation Turn-key projects
On-site project management Installation, commissioning and validation
Integration into local BMS and other facilities Providing training to customer's personnel
Full user, client co-ordination Printer and temperature chart recorder

If you would like to place a request for plant growth chamber price list or quotation, please email us details, our customer executive will assist you till you get 100% satisfaction. In addition to supply all over India, we also undertake export orders from Asia, Africa and Middle markets.
