Sand and Dust Chamber

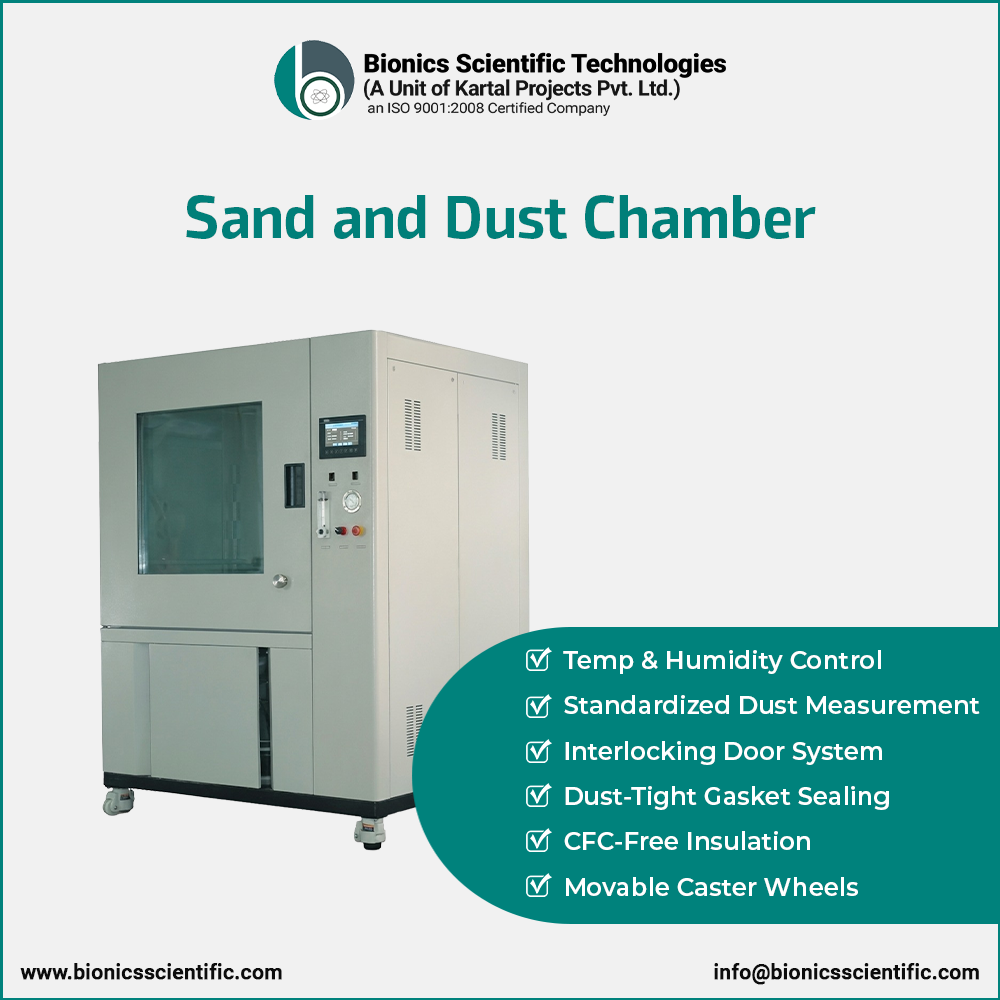

Our Dust Chambers are specially designed for reproducing a dust filled environment in a limited workspace following Indian and International testing standards especially for research and development works related to automotive and electronic components testing of their resistance to dust atmosphere. In a controlled atmosphere, these sand and dust chamber machines create simulation of dust in accordance to following standards:

IEC-600529	DIN-40050 IP5X & IP6X	SAE-J575
ISO-20653	IEC-60068-2-68	EEC-standards 89/393/EWG
91/368/EWG	89/336/EWG	ASTM C 150-7

Features

CRCA /SS / Galvanized sheet construction	CFC and asbestos free insulation
Adjustable / removable dust tray	Doors w/ interlocking system & viewing window
Dust measuring devices as per standards	Provision for extra dust (fine powder) bags
Timer for triggering funnel vibrators	Fitted with vibration absorbers
Heaters on funnel sides for dust drying	Machine Mounted on sturdy frame
Movable design using caster wheels	Internal light w/ switch
Dust-tight gasket	Control Panel for Temperature, Humidity, and Timer

Testing Standards: Employing with finest of engineering practices our Sand and Dust Chamber are uniquely designed to perform testing processes compliant to IEC, JIS, MIL and IS standards etc. Further more, many other suggestive standards can also be combined on request.

Capacity: These units are custom designed and constructed with exact specifications provided by the customers. However, along with tailor made solutions, we also have our standard models which are instant available with different ranges of parameters and capacities as per specific testing requirements.

Construction: Our Dustproof testing machines are constructed with high quality materials. With a custom choice of customers, exterior is constructed with CRCA sheet, Stainless Steel (304, 316 & 316 L) or Galvanized sheet. Interior chamber is made of stainless steel with mirror finish. The door is solid and lockable with a micro switch enabling an interlocking system. The door is provided with toughened glass observation window and a rubber wiper with rotating handle.

Dust Tray (Shelf): Stainless steel dust trays provide strong platform to place components and let free flow of dust. These trays are removable and can be adjusted as required.

Safety Features: With safety features including over load, Emergency stop, door open and short circuit, these units provide safe working environment to both the samples and operators.

Optional Accessories: Supplied with a number of optional accessories including Casters, Chamber Lamp and Viewing window Wiper etc.

Specifications:

Model	BST-SDC125	BST-SDC425	BST-SDC1000
Capacity	125 Liters	425 Liters	1000 Liters
Construction	CRCA /Stainless Steel / Galvanized sheet
Temperature	Ambient to 80°C
Temperature Accuracy	+/- 0.5°C
Circular air flow timer	0 to 99 Hr Adjustable
Vibration hit time	0 to 999 Hr Adjustable
Dust Agitation	As per chemical composition
Dust Collection	25 gm ±5 gm within 5 minutes in define measuring device as per IS– 9000
Dust Testing Type	Dry powder, silicate cement, flue dust etc
Motor	Low noise Branded motor w/ dust seal
Cooling	Air Cooled
Optional Accessories	Casters, Chamber Lamp & window Wiper
Power Supply	220 / 230 / 240 Volts

#1 Sand and Dust Test Chamber Manufacturer in India:

We are a leading Sand and Dust Test Chamber manufacturer, supplier and exporter company based in India. We are supplying these units to all over India, Asia, Africa and Middle East Countries at economical price and excellent warranty. We are also offering custom designing and developing of Dust Chambers with the exact specifications provided by the customers. All these machines are tested on various parameters before deliver to the client's work place. We also undertake repair, service and AMC for Dust Chambers.
