Rectangular Water Bath 6 & 12 Holes

  • Home
  • Water Bath & Circulators
  • Rectangular Water Bath
Rectangular Water Bath
Rectangular Water Bath

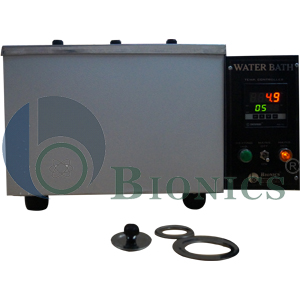

This range of rectangular water bath systems manufactured by Bionics Scientific is suitable for general boiling applications in laboratories. These systems offer loads of features that facilitate easy operation and comfortable working in any laboratory; stainless steel inner chamber is easy to clean and drain plug is fitted for quick water drainage. If your application needs stirring, a high speed stirrer can be fitted on request.

The standard models of our rectangular water bath units come with 6 and 12 holes (75 mm Diameter); however, if you require a unit with 9 holes, we can also construct with matched specifications you may require for specific applications. These high quality rectangular water baths are manufactured with single and double walled construction, special grade mineral wool is used as insulation, which minimizes heat loss. A number of optional accessories can be fitted enabling you to take optimum advantage of these water baths, which may include PID controller, auto cut off device, digital indicator and buzzer alarm etc.

We would appreciate your inquiries for our rectangular water bath systems, please email us for brochure, price list or quotation, we will be glad to respond you promptly upon receipt of your message.


Features


Single and double walled construction Thermostatic temperature controller
Supplied with removable concentric rings Stainless steel inner chamber
Drain plug for easy cleaning Supplied with or without stirring facility

Specifications


Model BST/RWB-6S BST/RWB-12S BST/RWB-6D BST/RWB-12D
Construction Single Walled Double Walled
Capacity 8 Liters 15 Liters 8 Liters 15 Liters
Chamber Dimensions 300 x 250 x 100 mm 355 x 405 x 100 mm 300 x 250 x 100 mm 355 x 405 x 100 mm
No. of holes 6 12 6 12
Holes Dia. 75 mm
Temperature range 5°C above ambient to 100°C
Temperature Sensitivity ±0.5°C or better
Temperature Sensor PT-100
Temperature Accuracy +5°C
Material of Construction - Inner chamber and lid - Stainless Steel (SS-304 grade)
- Outer chamber - Mild Steel duly powder coated
- Special grade mineral wool
Heating Immersion heaters (Kanthal brand)
Control panel - On/off switch
- Heating and mains indicators
- Thermostatic temperature controller
Power 220 V / 50 Hz
Optional - 9 Holes construction
- PID Controller
- Digital timer
- Automatic cut-off device
- Digital stirrer
- DQ, PQ, OQ & IQ documentations
